CTF Bootcamp S3: View source

GGG Apr 06, 2026

This article adapts the bootcamp session notes into a readable post. View the slides.

Today

  • Web apps
  • HTTP
    • Format
    • Status
    • Headers
  • HTML
  • JS
  • CSS
  • Known files
  • Hack time!

Tools

Install please:

  • httpie
  • httrack
  • katana
  • Burp Suite

What's a web app

Applications delivered over the wire by some server (e.g., the Internet) and executed by a web browser (e.g., Chrome, Firefox).

They are very popular nowadays and are used for much any you may want to do (e.g., calendar, mail, banking, music, video).

Web app interaction

Web applications receive input from the user, such input is processed somehow (change the GUI, send data to the server).

The client part of the web application (what runs on your browser and so on your computer) is on your control (altough most of the time it just does its thing). You can make your browser draw whatever on your screen and send anything back to the server.

Of course, the server may not respond as you wish, some other party controls its code.

Talking to the server

When the web application (on your browser) and the backend server (on some external server) communicate they use HTTP (Hypertext Transfer Protocol).

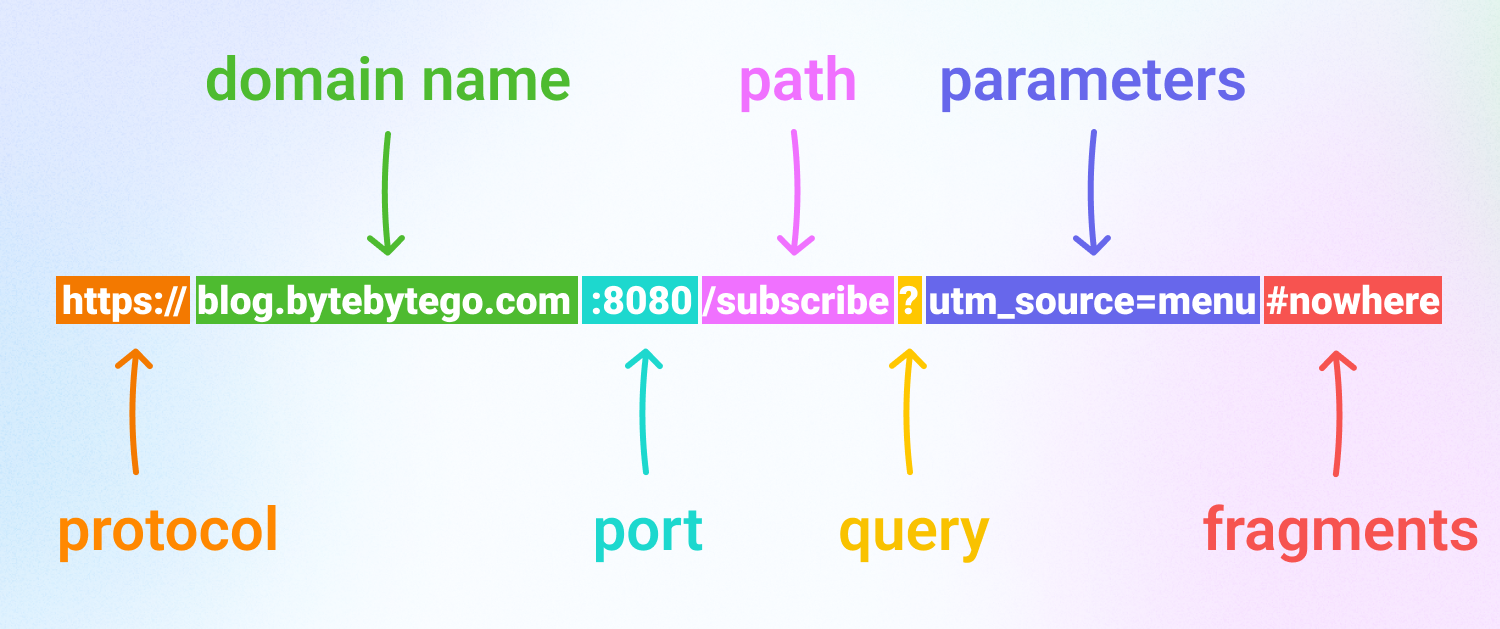

URLs

HTTP

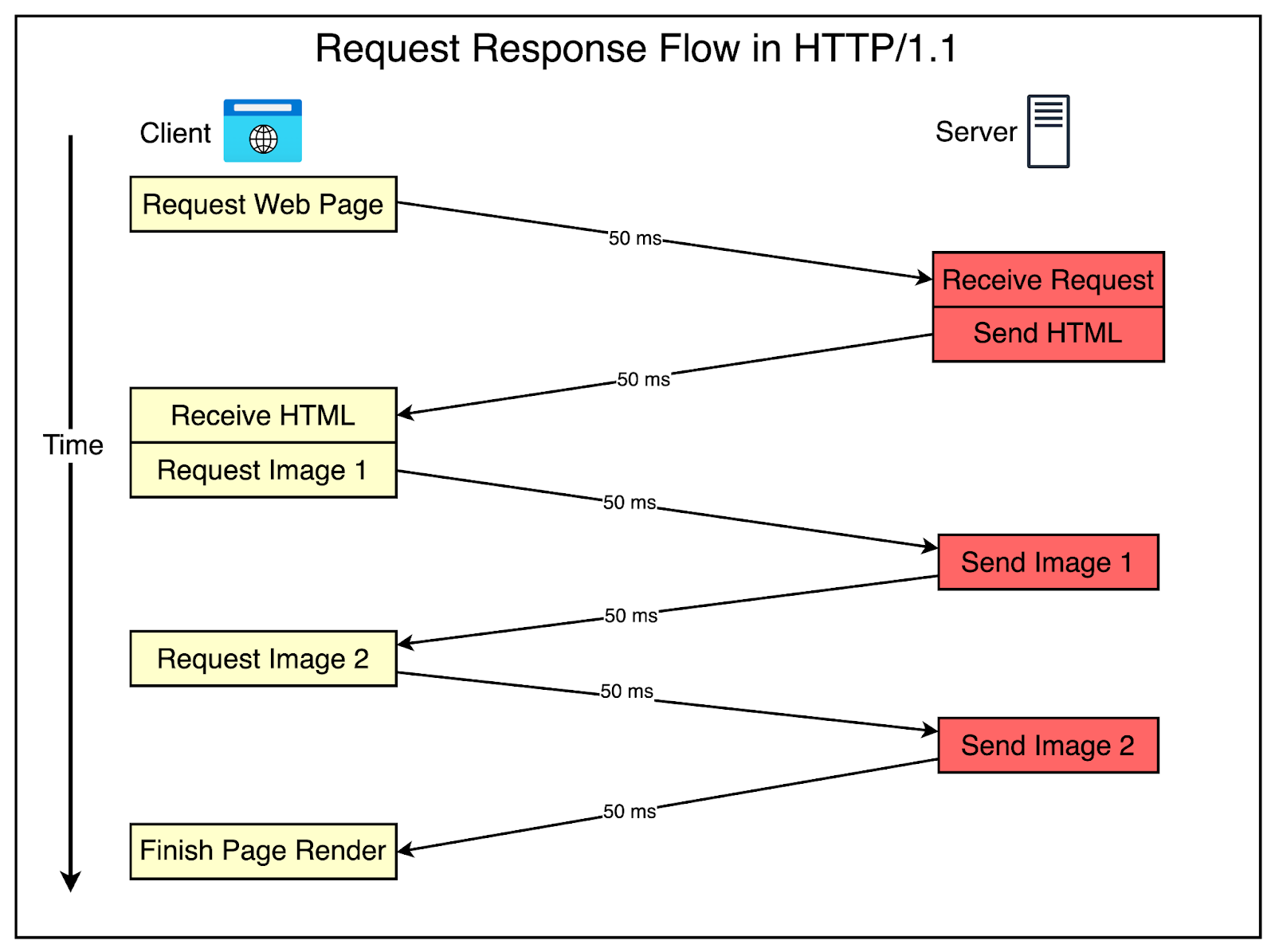

  • Request-response protocol
    • A client makes a request, the server processes it and returns a response
  • Stateless
    • Any state should be included in the requests (e.g., in the cookies, as extra form parameters, in the path or querystring of the URL).

Message format

Request

VERB /path HTTP/version
Header: value
Header: value

(optional body)

Note: even if no body is present, a newline must follow the headers.

Response

HTTP/version status
Header: value
Header: value

(optional body)

Request methods (verbs)

Words that indicate the purpose of the request. They have each different semantics and the following list is their intended use case, nonetheless you could have an (ugly) web application using POSTs alone.

  • GET: retrieve a resource
  • POST: send data to a resource, may change state
  • PUT: replaces a resource
  • PATCH: modifies a resource
  • DELETE: delete a resource
  • OPTIONS: describe communication option for a resource
  • HEAD: get GET response but without body (i.e., only the headers)

We will mostly concern ourselves with GET and POST.

Status code

Returned by the server.

Indicates what happened when processing the request.

Categories

  • 1xx: Informational
  • 2xx: Success
  • 3xx: Redirection
  • 4xx: Client errors
  • 5xx: Server errors

Common status

  • 200 OK: Request succeeded
  • 302, 303, 307, 308: Redirect to another page
  • 400 Bad Request: Content of the request was wrong
  • 404 Not Found: Resource does not exist
  • 500 Internal Server Error: Unexpected crash from the server

Note

It's up to the server to pick a status to return. It could have went all wrong and return 200 OK still.

Headers

Metadata about the request and responses.

Many are standardized but you can include whatever header you want, it's up to the server to do something with it.

Host (request)

The domain the client wants to access

Host: example.com

User-Agent (request)

Identification for the client app that's doing the request (e.g., browser, curl, python)

User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64)

Indicates a cookie that the client should associate with the server.

Set-Cookie: session=abc123; Path=/; HttpOnly; Secure

Cookies stored by the client.

Cookie: session=abc123

Authorization (request)

Authentication credentials for the server.

Authorization: Bearer eyJhbGciOiJIUzI1NiIsInR5cCI...

Content-Type (request and response)

Indicates the content type of the message body.

Content-Type: application/x-www-form-urlencoded

Location (response)

In server redirect responses, indicates the location to go to.

Location: https://example.com/login

Initial request

First you ask for a page.

GET / HTTP/1.1
Accept: */*
Accept-Encoding: gzip, deflate
Connection: keep-alive
Host: www.wikipedia.org
User-Agent: HTTPie/3.2.4

And you get it back.

HTTP/1.1 200 OK
accept-ranges: bytes
age: 35491
cache-control: s-maxage=86400, must-revalidate, max-age=3600
content-encoding: gzip
content-length: 26368
content-type: text/html
date: Sat, 22 Nov 2025 10:25:11 GMT
etag: W/"1bb6c-6426794fdf540"
last-modified: Thu, 30 Oct 2025 22:15:09 GMT
[snip…]

<!DOCTYPE html>
<html lang="en" class="no-js">
<head>
<meta charset="utf-8">
<title>Wikipedia</title>
<meta name="description" content="Wikipedia is a free online encyclopedia, created
and edited by volunteers around the world and hosted by the Wikimedia Foundation.">
[snip…]

The browser (probably) knows how to render the result data.

Further requests

All interactions with the server are further done with HTTP requests.

Logging in to a site:

POST /login HTTP/1.1
Host: example.com
Content-Type: application/x-www-form-urlencoded
Content-Length: 33

username=admin&password=secret123

We get a response:

HTTP/1.1 200 OK
Content-Type: application/json
Set-Cookie: session_id=ab34ff1290d...; Path=/; HttpOnly; Secure

The cookie is used in further requests to let the server know we have authenticated.

GET /account/profile HTTP/1.1
Host: example.com
Cookie: session_id=ab34ff1290da88f112233
HTTP/1.1 200 OK
Content-Type: text/plain; charset=utf-8

Hello, user admin

What's on your browser

Your web browser supports many file formats. The main ones are HTML, CSS and JavaScript.

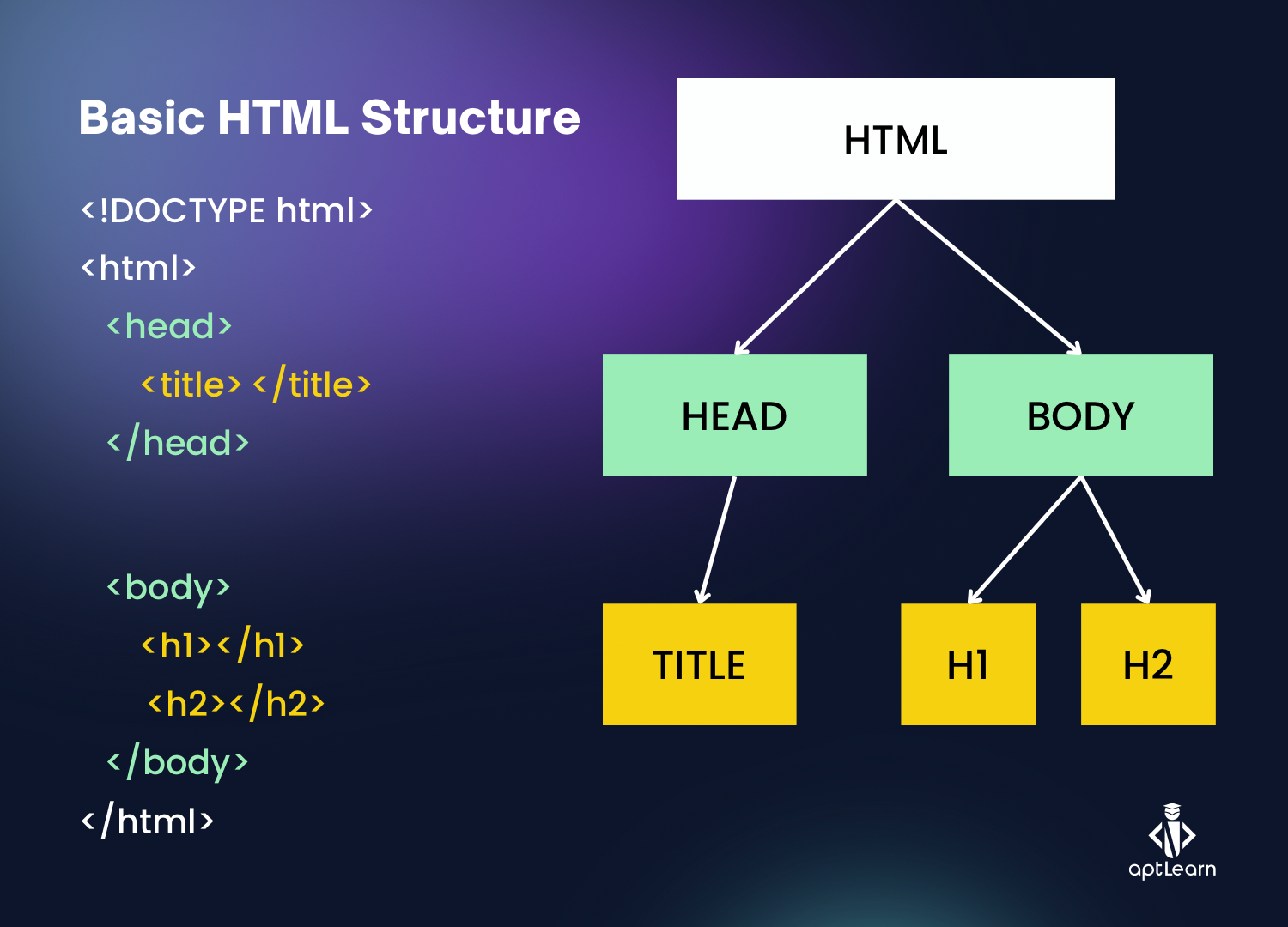

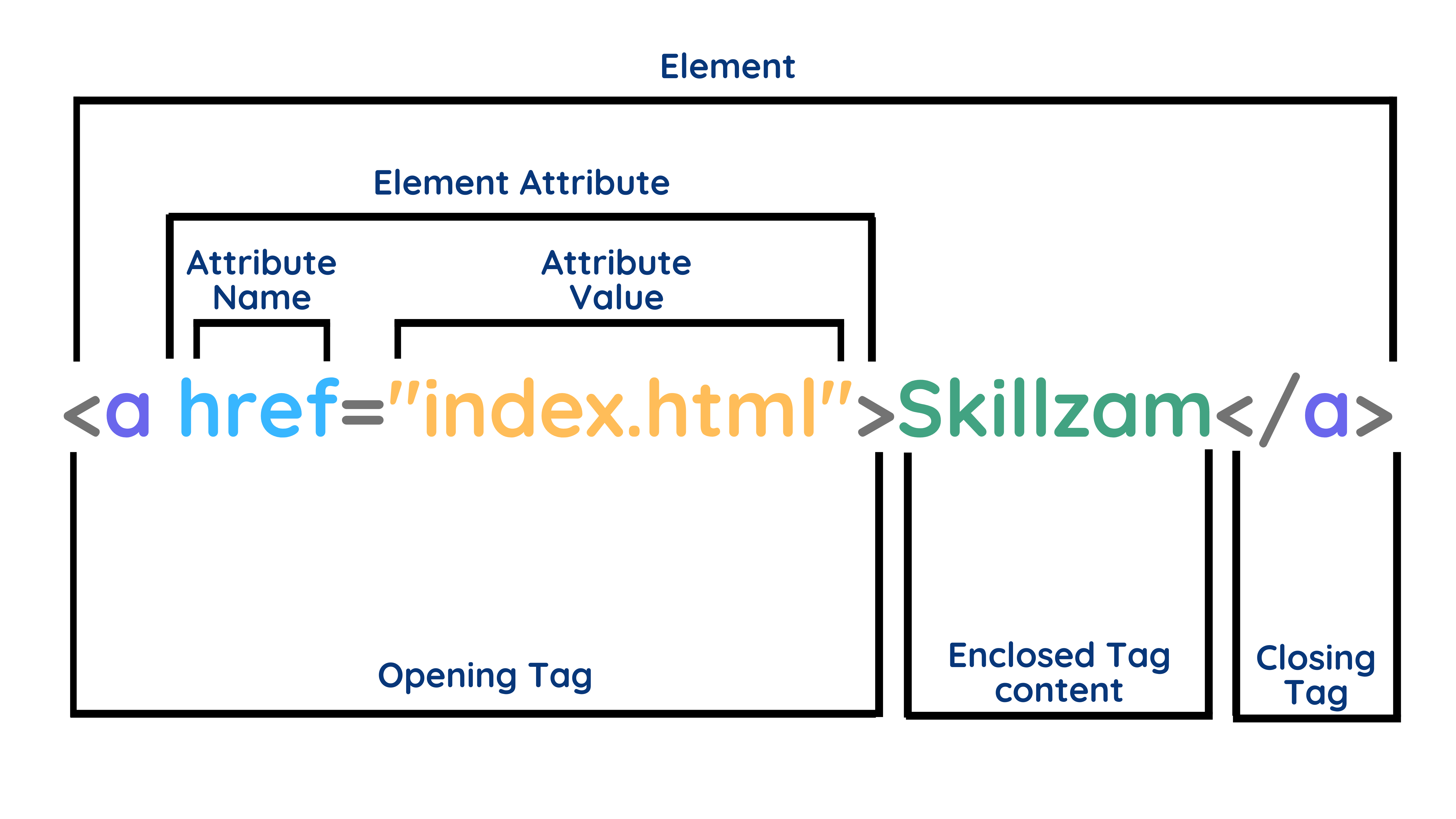

HTML

It specifies the structure of the page (text, images, buttons, input fields, etc) and the behaviours of some elements (e.g., buttons send some data to servers).

CSS

Controls the styling (e.g., color, layout, fonts) of the elements in the HTML.

JavaScript

Program code that runs on your browser and interacts with the HTML (e.g., receive events from the user, change the page structure) and can send data over to the server and receive the results.

HTML = structure

CSS = presentation

JavaScript = behaviour

Browser utilities

The browser has some utilities to inspect web pages.

  • Right-click, view page source: View received HTML from server
  • Developer console
    • Inspector: View live view of the site, probably mutated by JS
    • Console: Evaluate JS on current context
    • Network: See HTTP requests done by the site
    • Storage: See data stored by the browser about the site

The remote component

While your browser handles the frontend, the server handles the backend, the logic you don't see.

This part may be written in any language that the server computer can execute (common choices are PHP, Python, and server side JavaScript itself).

Where is the data?

The remote server has to store the users data (e.g., mails, passwords, posts, messages) somewhere. It usually uses a SQL implementation.

The web server may do something like this to retrieve the users.

SELECT * FROM users
WHERE username = 'alice'
  AND password = 'password123';

Similar queries would be used to create a new user, change a user's password, create a new post, and so.

Known files

There are some common files usually exposed by web servers.

We can use them to enumerate the service.

robots.txt

Tells bots which paths they are allowed/disallowed to visit.

Of course, the bots are able to ignore it.

Example

User-agent: *
Disallow: /admin
Disallow: /backup
Disallow: /internal-api
Disallow: /secret-panel

sitemap.xml

List URLs on the site to make indexing easier.

Example

<?xml version="1.0" encoding="UTF-8"?>
<urlset>
  <url>
    <loc>https://example.com/</loc>
  </url>
  <url>
    <loc>https://example.com/login</loc>
  </url>
  <url>
    <loc>https://example.com/admin</loc>
  </url>
  <url>
    <loc>https://example.com/api/v1/users</loc>
  </url>
  <url>
    <loc>https://example.com/dev-dashboard</loc>
  </url>
</urlset>

Commands

curl

Don't. Prefer httpie, it's friendlier.

http(pie)

Make HTTP(S) requests.

http [METHOD] URL [Header:value] [url_parameter==value] [form_attr=value]

HTTPie does POST JSON requests when given data, -f specifies application/x-www-form-urlencoded.

http -f URL [form_attr=value]

You can show the sent request by using -v.

http -v URL

Much recommended.

katana

Crawls a page and returns the found URLs.

katana -u URL

Recommended to use some flags to juice it up.

katana -td -jc -d 10 -pc -kf all -u URL

Check the --help for explanations.

httrack

Create a mirror of a a website to the disk.

httrack URL

May be useful if you want to browse a website components offline. (Maybe grep? 👀)

Burp Suite

Soon™

Exercises

Exercises (cont)

Further learning

References

Hack time!
